Deep Well Microtiter GROM Plates made from Glass














Special, excellent Features and Benefits:

made from borosilicate glass


 chemically inert, i.e. solvent resistant

enabling high sample throughput


 therefore well - suited to all HPLC techniques such as LC/MS, combinatorial chemistry, liquid-liquid extraction further meeting all demands of microbiology and related microtechniques

uniform dimensions (85 x 127 mm)


 to be used for batch processing, i.e.sample loading and fraction collecting (easy stacking)


Button_mini_pink.gif (1036 Byte)96-well deep well GROM plates made from glass - 1200 µl

Button_mini_pink.gif (1036 Byte)384-well deep well GROM plates made from glass - 250 µl

Button_mini_pink.gif (1036 Byte)1536-well deep well GROM plates made from glass - 50 µl



  Product description

Deep well microtiter GROM plates were recently introduced "in the Service of Science". The wells of these new GROM plates are made of borosilicate glass and are consequently solvent resistant and exhibit a high degree of chemical inertness. Thus, they are tailor-made not only for PCR methodologies, but also for combinatorial chemistry applications. These microtiter plates are available with glass wells in 3 versions including one with 96 "deep wells" (well volume of 1.2 ml) and another with 384 "deep wells" (well volume of 250 µl).

For the most demanding applications, there is a third version available with 1536 "deep wells" (well volume of 50 µl).

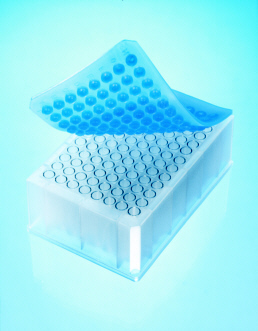

   These "deep well microtiter plates" can be closed with precision lids of flexible silicone rubber or sealed with aluminum tape. The plates are autoclavable and may be used at up to 120° C. Other specifications include a plate bottom of polypropylene and a SBS footprint. Naturally, the plates are also stackable.

This new product line is an outstanding compliment to the specially developed NovoGROM HPLC columns for combinatorial chemistry (for more information, see Combinatorial Chemistry )

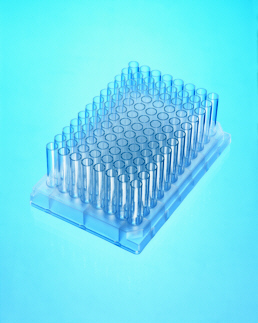

  96-well deep well GROM plates made from glass

Technical data / specifications:
length
outer diameter
inner diameter
volume		 42 mm
7.80 mm
6.50 mm
1 200 µL

Geometry of glass inserts:
Weight of micro plate including 96 inserts:     289 g

Physical properties:
mean linear coefficient of expansion: 9.2 x 10 -3 x k –1
density (20° C) 2.48 g / mL

Chemical compounds:
SiO2  69.2%, Al2O3 4.3%, CaO 4.6%,  MgO 3.3%, Na2O 14.3%, K2O 2.3%,  B2O3 1.0%, CeO2 0.5%, Fe2O3 0.08%



  Order  Number Description Quantity Price (€)


  TGG4120R009601 96-deep well microtiter GROM plate
(polypropylene rack / fixed vials)		 1 52,-
  TGG4120R009610 96-deep well microtiter GROM plates
(polypropylene rack / fixed vials)		 10 498,-
  TGG4120R009650 96-deep well microtiter GROM plates
(polypropylene rack / fixed vials)		 50 2.385,-


  TAG4120R009601 96-deep well microtiter GROM plate
(eloxated aluminium plate / loose vials)		 1 689.-
  TAG4120R009610 96-deep well microtiter GROM plates
(eloxated aluminium plate /  loose vials)		 10 4.470.-


  384-well deep well GROM plates made from glass

Technical data / specifications:
length
outer diameter
inner diameter
volume		 42 mm
3.45  mm
2.75 mm
250 µL

Geometry of glass inserts:
Weight of micro plate including 384 inserts:    223.5 g

Physical properties:
mean linear coefficient of expansion a: 8.7 x 10 -6 x k –1
density  r (20° C) 2.48 g / mL

Chemical compounds:
SiO2  69.0%, Al2O3 7.0%, CaO 3.0 %,  MgO 1.0%, Na2O 16.0%, B2O3 2.0%, ZnO 1.0%



  Order  Number Description Quantity Price (€)


  TGG4025R038401 384-deep well microtiter GROM plate
(polypropylene plate /  fixed vials)		 1 119.-

  TGG4025R038410 384-deep well microtiter GROM plates
(polypropylene plate /  fixed vials )		 10 1.052.-

  TGG4025R038450 384-deep well microtiter GROM plates
( polypropylene plate /  fixed vials )		 50 5.046.-


  TAG4120R038401 384-deep well microtiter GROM plate
( eloxated aluminium plate /  loose vials )		 1 1.049.-

  TAG4120R038410 384-deep well microtiter GROM plates
(eloxated aluminium plate /  loose vials )		 10 8.056.-

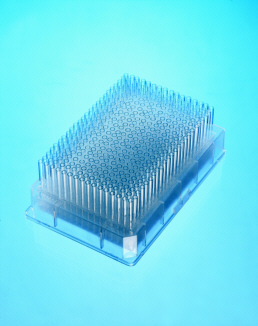

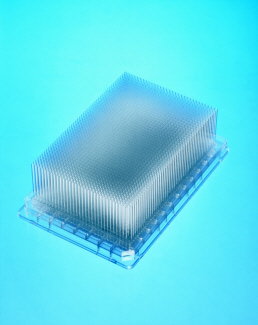

 1536-well deep well GROM plates made from glass

Technical data / specifications:
length
outer diameter
inner diameter
volume		 37 mm
1.55  mm
1.20 mm
50 µL

Geometry of glass inserts:
Weight of micro plate including 1536 inserts:    168 g

Physical properties:
mean linear coefficient of expansion a 20/300: 3.3 x 10 -6 x k –1
density  r (20° C) 2.23 g / ml

Chemical compounds:
SiO2  81.0%, Al2O3 2.0%, Na2O + K2O 4.0%, B2O3 13.0%



  Order  Number Description Quantity Price (€)


  TGG4005R153601 1 536-deep well microtiter GROM plate
( polypropylene plate /  fixed vials )		 1 266,-

  TGG4005R153610

1 536-deep well microtiter GROM plates
( polypropylene plate /  fixed vials )

 10 2.371,-

  TGG4005R153650

1 536-deep well microtiter GROM plates
(polypropylene plate /  fixed vials)

 50 11.159,-



  Vials and sealings for 96-, 384- and 1536-well deep well GROM plates:


  Order  Number Description Quantity Price (€)


  TZ00021 96-well plate lids (silicone) - autoclavable / pierceable 10 24,-

  TZ00020 96-well plate lids (silicone) - autoclavable / pierceable 50 106,-

  TZ00026 Plate lids for 96 well plates (silicone rubber / PTFE) - autoclavable / pierceable 1 21.-

  TZ00025 Plate lids for 96 well plates (silicone rubber / PTFE) - autoclavable / pierceable 10 201,-

  TZ00032 Adhesive aluminium sealing tape
for 96-, 384- and 1536-well deep well plates, DMSO resistant		 10 12,-

  TZ00031 Adhesive aluminium sealing tape
for 96-, 384- and 1536-well deep well plates, DMSO resistant		 100 53,-

  TZ00037 Adhesive aluminium sealing tape for 96-, 384- and 1536-well deep well plates, for aqueous solutions 10 12.-

  TZ00036 Adhesive aluminium sealing tape for 96-, 384- and 1536-well deep well plates, for aqueous solutions 100 53,-
