Order Number

Description i. d.

max. bed length

bed volume

max. pressure

Price (EUR)

G2010Z

10 mm

200 mm

0 - 16 ml

3.0 MPa

empty 283.-

G4510Z

10 mm

450 mm

20 - 35 ml

3.0 MPa

empty 293.-

G9910Z

10 mm

999 mm

63 - 78 ml

3.0 MPa

empty 312.-

G2015Z

15 mm

200 mm

0 - 35 ml

2.5 MPa

empty 307.-

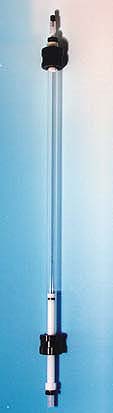

G4515Z

15 mm

450 mm

44 - 80 ml

2.5 MPa

empty 323.-

G9915Z

15 mm

999 mm

141 - 176 ml

2.5 MPa

empty 351.-

G2020Z

20 mm

200 mm

0 - 63 ml

2.0 MPa

empty 329.-

G4520Z

20 mm

450 mm

79 - 141 ml

2.0 MPa

empty 339.-

G9920Z

20 mm

999 mm

251 - 314 ml

2.0 MPa

empty 383.-

G2025Z

25 mm

200 mm

0 - 98 ml

1.5 MPa

empty 345.-

G4525Z

25 mm

450 mm

123 - 220 ml

1.5 MPa

empty 360.-

G9925Z

25 mm

999 mm

392 - 490 ml

1.5 Mpa

empty 403.-

G2032Z

32 mm

200 mm

0 - 161 ml

1.0 MPa

empty 360.-

G4532Z

32 mm

450 mm

201 - 362 ml

1.0 MPa

empty 441.-

G9932Z

32 mm

999 mm

642 - 803 ml

1.0 MPa

empty 496.-

G2050Z

50 mm

200 mm

0 - 390 ml

1.0 MPa

empty 548.-

G4550Z

50 mm

450 mm

490 - 880 ml

1.0 MPa

empty 610.-

G9950Z

50 mm

999 mm

1570 - 1960 ml

1.0 MPa

empty 700.-

NovoGROM BIO Glass Columns are unique and versatile and are especially dedicated to biochemical applications. This outstanding column hardware meets all the needs defined by biochemists when applying high salt concentrations ion exchange or hydrophobic interaction chromatography, for instance. Due to their high maximum pressure limits they also perform rather well in normal phase, reversed phase and flash chromatography applications. The specifications of these outstanding columns are as follows: the calibrated tube is boro-silicate glass, the column head is adjustable, the fritts (pore size 2 or 10 µm) consist of sintered glass, the lamelle seales are of PTFE and the cartridge holder is made from anodized aluminium.

i. d.

bed length

bed volume

max. pressure

Price (EUR)

G1205L

5 mm

0 - 120 mm

0 - 2.4 ml

9.0 MPa

empty 407.-

G1205T

5 mm

60 -120 mm

1.2 - 2.4 ml

9.0 MPa

empty 393.-

G2605L

5 mm

140 - 260 mm

2.8 - 5.2 ml

9.0 MPa

empty 454.-

G2605T

5 mm

200 - 260 mm

4.0 - 5.2 ml

9.0 MPa

empty 445.-

G1210L

10 mm

0 - 120 mm

0 - 9.4 ml

8.0 MPa

empty 393.-

G1210T

10 mm

60 - 120 mm

4.7 - 9.4 ml

8.0 MPa

empty 376.-

G2610L

10 mm

140 - 260 mm

11.0 -20.0 ml

8.0 MPa

empty 438.-

G2610T

10 mm

200 - 260 mm

15.6 - 20.0 ml

8.0 MPa

empty 424.-

G1215L

15 mm

0 - 120 mm

0 - 21.0 ml

7.0 MPa

empty 470.-

G1215T

15 mm

60 - 120 mm

10.5 - 21.0 ml

7.0 MPa

empty 453.-

G2615L

15 mm

140 - 260 mm

25.0 - 46.0 ml

7.0 MPa

empty 530.-

G2615T

15 mm

200 - 260 mm

35.0 - 46.0 ml

7.0 MPa

empty 509.-

G1220L

20 mm

0 - 120 mm

0 - 38 ml

6.0 MPa

empty 591.-

G1220T

20 mm

60 - 120 mm

19 - 38 ml

6.0 MPa

empty 569.-

G2620L

20 mm

140 - 260 mm

44 - 92 ml

6.0 MPa

empty 647.-

G2620T

20 mm

200 - 260 mm

63 - 92 ml

6.0 MPa

empty 625.-

G1225L

25 mm

0 - 120 mm

0 - 59 ml

5.0 MPa

empty 673.-

G1225T

25 mm

60 - 120 mm

29 - 59 ml

5.0 MPa

empty 652.-

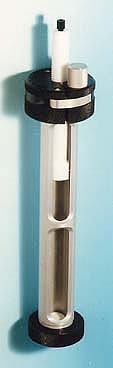

G2625L

25 mm

140 - 260 mm

68 - 127 ml

5.0 MPa

empty 721.-

G2625T

25 mm

200 - 260 mm

98 -127 ml

5.0 MPa

empty 699.-

• stable up to 50-90 bar
• low dispersion hardware
• calibrated glass tube
• fast and easy replacement of cartridge
• quick adjustment of column head
• decent, economical pricing
• fully biocompatible

• for universal usage
• no extra-column band broadening
• visible gel / packing
• no tools needed
• convenient, easy to handle
• cost saving refill service
• resistant to ammonium sulfate,

NovoGROM PREP Glass Columns are well-designed for Up-Scaling in all common chromatographical techniques. These preparative glass columns are unmached for conducting the different methods used in preparative high performance liquid chromatography, such as ion exchange-, hydrophobic interaction or size exclusion chromatography, as well as normal phase- or reversed phase chromatography. These columns are chemically inert, show excellent flow dispersion and are well suited to medium pressure chromatography.
These columns are equipped with two adjustable column heads at both ends of the column. They are available packed with any of the stationary phases described on these web sites or with materials from other manufacturers (like ODS-Prep from TOSO BIOSEP or ODS-AQ S-20 from YMC). Further, the prompt, quickly responding GROM Refill Service will enable drastical cost saving on future refills of this hardware.

Order Number

Description i. d.

max. length

bed volume ml

max. pressure

Price (EUR)

G1210P

10 mm

100 mm

1–8 ml

8.0 MPa

empty 353.-

G2510P

10 mm

250 mm

13–20 ml

8.0 MPa

empty 379.-

G5010P

10 mm

500 mm

32–39 ml

8.0 MPa

empty 407.-

G1015P

15 mm

100 mm

2–18 ml

7.0 MPa

empty 407.-

G2515P

15 mm

250 mm

28-44 ml

7.0 MPa

empty 435.-

G5015P

15 mm

500 mm

72–88 ml

7.0 MPa

empty 461.-

G1025P

25 mm

100 mm

5–49 ml

5.0 MPa

empty 461.-

G2525P

25 mm

250 mm

79–123 ml

5.0 MPa

empty 489.-

G5025P

25 mm

500 mm

201–245 ml

5.0 MPa

empty 515.-

G1035P

35 mm

100 mm

10–96 ml

5.0 MPa

empty 515.-

G2535P

35 mm

250 mm

154–240 ml

5.0 MPa

empty 543.-

G5035P

35 mm

500 mm

394–481 ml

5.0 MPa

empty 569.-

G1050P

50 mm

100 mm

20–196 ml

5.0 MPa

empty 569.-

G2550P

50 mm

250 mm

314–491 ml

5.0 MPa

empty 623.-

G5050P

50 mm

500 mm

805–981 ml

5.0 MPa

empty 678.-

The specifications of these columns are as follows: the glass tube is borosilicate, the adjustable shaft is made from PTFE and the, the lamelle seals from PTFE and the fritts (pore size 5 or 10 µm) are of sintered steel.

These columns can be packed with any of the stationary phases listed on these web sites or with the customer’s stationary phase.

Order Number

Description**

Price (EUR)

V0108

Guard column cartridge, semi-preparative / stainless steel, - 10 x 8 mm - empty

52.-

V0208

Guard column cartridge, semi-preparative / stainless steel, - 20 x 8 mm - empty

55.-

V0408

Guard column, semi-preparative, stainless steel, 40 x 8 mm, with connecting nut and ZDV adaptor

136.-

S0408

HPLC column, semi-preparativ / stainless steel - 40 x 8 mm - (complete), empty

122.-

S0508

HPLC column, semi-preparativ / stainless steel - 50 x 8 mm - (complete), empty

146.-

S0808

HPLC column, semi-preparativ / stainless steel - 75 x 8 mm - (complete), empty

146.-

S1008

HPLC column, semi-preparativ / stainless steel - 100 x 8 mm - (complete), empty

146.-

S1208

HPLC column, semi-preparativ / stainless steel - 125 x 8 mm - (complete), empty

146.-

S1508

HPLC column, semi-preparativ / stainless steel - 150 x 8 mm - (complete), empty

146.-

S2008

HPLC column, semi-preparativ / stainless steel - 200 x 8 mm - (complete), empty

163.-

S2508

HPLC column, semi-preparativ / stainless steel - 250 x 8 mm - (complete), empty

163.-

S3008

HPLC column, semi-preparativ / stainless steel - 300 x 8 mm - (complete), empty

190.-

S5008

HPLC column, semi-preparativ / stainless steel - 500 x 8 mm - (complete), empty

227.-

Biocompatible, semi-preparative NovoGROM PEEK columns, especially suited for biochemical applications*

Order Number

Description

Price (EUR)

P0508

PEEK column, semi-preparative - 50 x 7.5 mm - empty

147.-

P0808

PEEK column, semi-preparative - 75 x 7.5 mm - empty

160.-

P1008

PEEK column, semi-preparative - 100 x 7.5 mm - empty

165.-

P1508

PEEK column, semi-preparative - 150 x 7.5 mm - empty

178.-

P2508

PEEK column, semi-preparative - 250 x 7.5 mm - empty

240.-

P3008

PEEK column, semi-preparative - 300 x 7.5 mm - empty

240.-

Preparative stainless steel NovoGROM columns, 20 mm i.d.*

Preparative stainless steel NovoGROM HPLC columns are simple to use and have excellent long-term stability. Guard columns can be coupled either directly or via a capillary to the preparative column.

Order Number

Description**

Price (EUR)

V0120

Guard column cartridge, preparative, 10 x 20 mm

from 240.-

V0220

Guard column cartridge, preparative, 20 x 20 mm

from 300.-

S0320u

Guard column, preparative - 30 x 20 mm - (complete), empty

145.-

S0420u

Guard column, preparative - 40 x 20 mm - (complete), empty

145.-

S0520u

Guard column, preparative - 50 x 20 mm - (complete), empty

145.-

S0320

HPLC column, preparative / stainless steel - 30 x 20 mm - (complete), empty

145.-

S0420

HPLC column, preparative / stainless steel - 40 x 20 mm - (complete), empty

145.-

S0520

HPLC column, preparative / stainless steel - 50 x 20 mm - (complete), empty

145.-

S0820

HPLC column, preparative / stainless steel - 75 x 20 mm - (complete), empty

175.-

S1020

HPLC column, preparative / stainless steel - 100 x 20 mm - (complete), empty

175.-

S1220

HPLC column, preparative / stainless steel - 125 x 20 mm - (complete), empty

200.-

S1520

HPLC column, preparative / stainless steel - 150 x 20 mm - (complete), empty

225.-

S2520

HPLC column, preparative / stainless steel - 250 x 20 mm - (complete), empty

235.-

S3020

HPLC column, preparative / stainless steel - 300 x 20 mm - (complete), empty

265.-

S5020

HPLC column, preparative / stainless steel - 500 x 20 mm - (complete), empty

325.-

Preparative NovoGROM HPLC columns in stainless steel, 30 to 100 mm i.d.*

75.2112

Guard column holder for 20 x 30 mm guard column cartridge

431.-

75.2113

Guard column holder for 30 x 30 mm guard column cartridge

431.-

V0230

Guard column cartridge, preparative - 20 x 30 mm - (empty), complete

upon request

V0330

Guard column cartridge, preparative, 30 x 30 mm - (empty), complete

upon request

S0230

HPLC column, preparative, stainless steel - 20 x 30 mm - (empty)

528.-

S0330

HPLC column, preparative, stainless steel - 30 x 30 mm - (empty)

528.-

S0530

HPLC column, preparative, stainless steel - 50 x 30 mm - (empty)

532.-

S0830

HPLC column, preparative, stainless steel - 75 x 30 mm - (empty)

538.-

S1030

HPLC column, preparative, stainless steel - 100 x 30 mm - (empty)

538.-

S1230

HPLC column, preparative, stainless steel - 125 x 30 mm - (empty)

541.-

S1530

HPLC column, preparative, stainless steel - 150 x 30 mm - (empty)

547.-

S2530

HPLC column, preparative, stainless steel - 250 x 30 mm - (empty)

549.-

S0440

Stainless steel guard column - 40 x 40 mm - (empty)

901.-

S1240

HPLC column, preparative, stainless steel - 125 x 40 mm - (empty)

975.-

S2540

HPLC column, preparative, stainless steel - 250 x 40 mm - (empty)

1.072.-

S5040

HPLC column, preparative, stainless steel - 500 x 40 mm - (empty)

1.876.-

S0463

Stainless steel guard column - 40 x 63 mm - (empty)

1.394.-

S1263

HPLC column, preparative, stainless steel - 125 x 60 mm - (empty)

1.501.-

S2563

HPLC column, preparative, stainless steel - 250 x 63 mm - (empty)

1.608.-

S3063

HPLC column, preparative, stainless steel - 300 x 63 mm - (empty)

1.696.-

S5063

HPLC column, preparative, stainless steel - 500 x 63 mm - (empty)

2.359.-

S0475

Stainless steel guard column - 50 x 75 mm - (empty)

upon request

S2575

HPLC column, preparative, stainless steel - 250 x 75 mm - (empty)

upon request

S5075

HPLC column, preparative, stainless steel - 500 x 75 mm - (empty)

upon request

S0499

Stainless steel guard column - 50 x 100 mm - (empty)

upon request

S2599

HPLC column, preparative, stainless steel - 250 x 100 mm - (empty)

upon request

S3099

HPLC column, preparative, stainless steel - 300 x 100 mm - (empty)

upon request

S5099

HPLC column, preparative, stainless steel - 500 x 100 mm - (empty)

upon request

Axially compressible, preparative NovoGROM HPLC columns in stainless steel - 20 to 100 mm i.d. -*

Shrinkage of the packing can be compensated for by re-positioning the adapter at the entrance of the column. In this way, dead volume between the frit and the packing is avoided, thus maintaining resolution.

Order Number

Description**

Price (EUR)

B0520

BIAX-column, preparative - 50 x 20 mm - (complete), empty

735.-

B1220

BIAX-column, preparative - 125 x 20 mm - (complete), empty

735.-

B2520

BIAX-column, preparative - 250 x 20 mm - (complete), empty

777.-

B1240

BIAX-column, preparative - 125 x 40 mm - (complete), empty

2.681.-

B2540

BIAX-column, preparative - 250 x 40 mm - (complete), empty

3.135.-

B5040

BIAX-column, preparative - 500 x 40 mm - (complete), empty

3.940.-

B1260

BIAX-column, preparative - 125 x 63 mm - (complete), empty

4.557.-

B3060

BIAX-column, preparative - 300 x 63 mm - (complete), empty

4.824.-

B5060

BIAX-column, preparative - 500 x 63 mm - (complete), empty

5.227.-

B2599

BIAX-column, preparative - 250 x 100 mm - (complete), empty

upon request

B5099

BIAX-column, preparative - 500 x 100 mm - (complete), empty

upon request

* NovoGROM preparative columns ans semi-preparative columns can be packed with any of the stationary phases described on these web sites, resp. In GROM's HPLC catalogue.

Prices for packed preparative columns upon request.

** Other dimensions upon request
